The VoltageTemperature Sensor - TV Module is designed specifically as a sensor integrated into an existing monitoring system. It monitors voltage and temperature for one battery, uploading the data via its serial port with optical isolation as well. The module can be pasted on the monitored battery's case directly or mounted an additional rail.
TV Module
One module can monitor one battery's voltage and temperature
TC Module (Optional)
Converter
Converts UART bus to RS485 bus

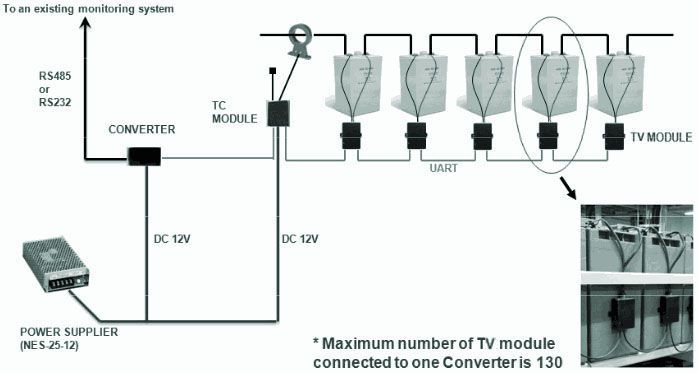

Topology
| Item | Descriptions |
|---|---|
| Device name | Converter |
| Port number |
RS485 or RS232 port |
| Communication mode |
RS485 or RS232 |
| Data format |
1 stgart bit, 8 data bits, 1 stop bit, non parity |
| Communication baud rate |
9600 BPS(Default) |
| Communication protocol |
MODBUS / RTU |
| NO. | Descriptions |
|---|---|
| 1 |
Huasu technology single module products, one module monitoring one battery, easy for installation without special training . |
| 2 |
Be able to block ripple interference from UPS. |
| 3 |
Flexible configuration, support MODBUS, easy to access the third party monitoring system, low tlticost solution. |
| 4 |
Monitoring voltage and battery temperature, accord with the standard ANSI/TIA - 942 and GB50174-2008. |
TV Module can be installed directly on battery cases.
TC Module(s) and Converter(s) can be installed on the shelf.
Order Reference
| Order P/N | Module Name | Descriptions |
|---|---|---|
| H3G-TV-02 | 2V TV Module | For 2V battery |
| H3G-TV-06 | 6V TV Module | For 6V battery |
| H3G-TV-12 | 12V TV Module | For 12V battery |
| CTB-485 | Converter | RS485 output |
| CTB-232 | Converter | RS232 output |
| TC-500 | TC Module | For 500A CT |
