The H3G-TA battery monitoring system is designed specifically for single cell. CELLCHECK combines the advanced technology with patented for the most thorough stationary battery health analysis in the industry.
The module can be pasted on the monitored battery's case directly or mounted an additional rail.
TA Module
One module can monitor one battery's voltage, resistance and temperature
TC Module (Optional)
Control Module
Managing TA, TC modules and reading data analysis automatically .
Alarm generation and storage, data display and upload.

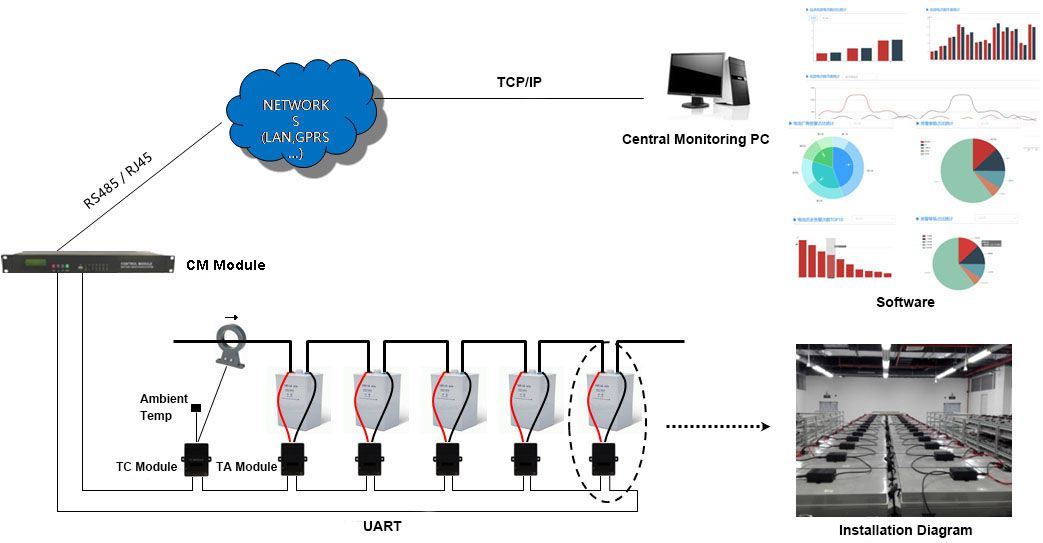

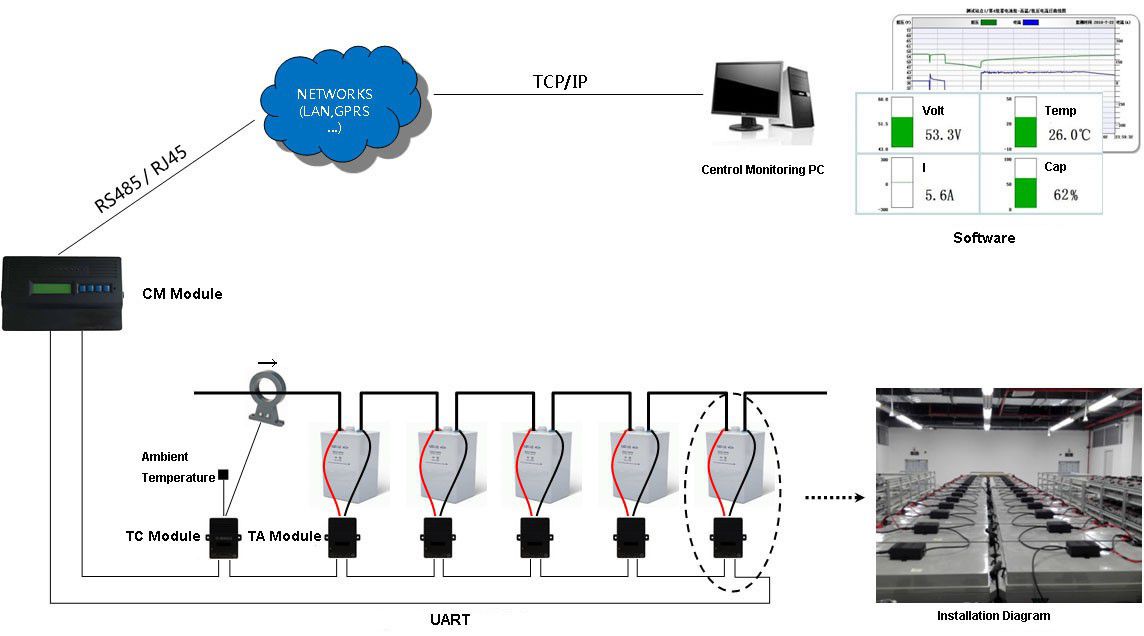

Topology
| Item | Descriptions |
|---|---|
| Device name | Control Module |
| Port number |
Ethernet port, RS485 or RS232 port |
| Communication mode |
Network, RS485 or RS232 |
| Data format |
1 stgart bit, 8 data bits, 1 stop bit, non parity |
| Communication baud rate |
9600 BPS(Default) |
| Communication protocol |
Modbus/RTU/ Modbus/TCP/SNMP protocol |
| NO. | Descriptions |
|---|---|
| 1 |
Huasu technology single module products, one module monitoring one battery, easy for installation without special training . |
| 2 |
Be able to block ripple interference from UPS. |
| 3 |
Measures internal resistance by small test current(Less than 5A). |
| 4 |
Monitoring voltage, resistance and battery temperature, accord with the standard ANSI/TIA - 942 and GB50174-2008. |
| 5 |
Flexible configuration, support MODBUS/RTU/Modbus/TCP/SNMP protocol. |

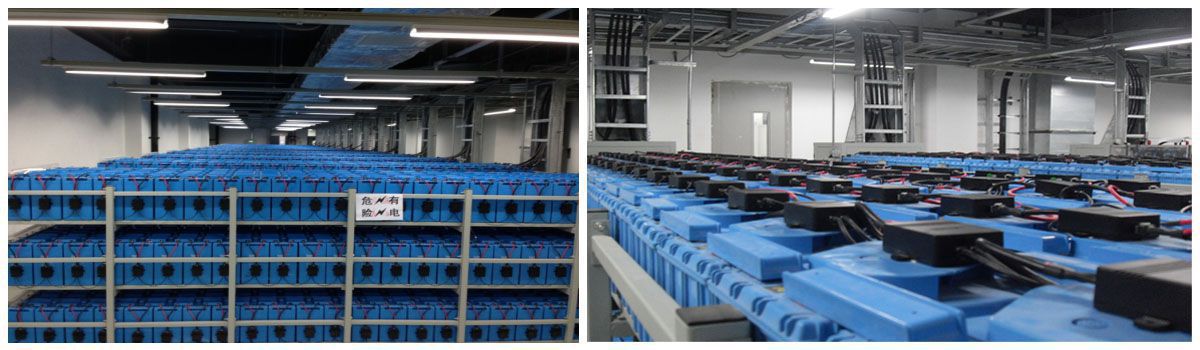

TA Module can be installed directly on battery cases.
CM can be fixed on 19 inch cabinet or battery rack.
TC Module(s) and Converter(s) can be installed on the shelf.
Order Reference
| Order P/N | Module Name | Descriptions |
|---|---|---|
| H3G-TA-02 | 2V TA Module | For 2V battery |
| H3G-TA-06 | 6V TA Module | For 6V battery |
| H3G-TA-12 | 12V TA Module | For 12V battery |
| CM-02N | Control module | Read, analysis and display the data |
| TC-500 | TC Module | For 500A CT |
